2024 FD Lights

THIS KIT INCLUDES REAR BRAKE LIGHT

Formula Drift Replica Decel Lights

Adjustable Brightness Levels!

Capable Of One Time Calibration- 50/50 or 70/30 Trigger Points

Works with PWM and PPM

Includes 2 COB Led Strips for Windshield, Windshield LED Splitter, 1 Rear Window COB Led Strip and Light Module

Short Cable is for Windshield Strips, Long Cable is for Rear Brake Strip

 !!!PLEASE CALIBRATE WITH THE CAR LIFTED OR MOTOR WIRES REMOVED!!!

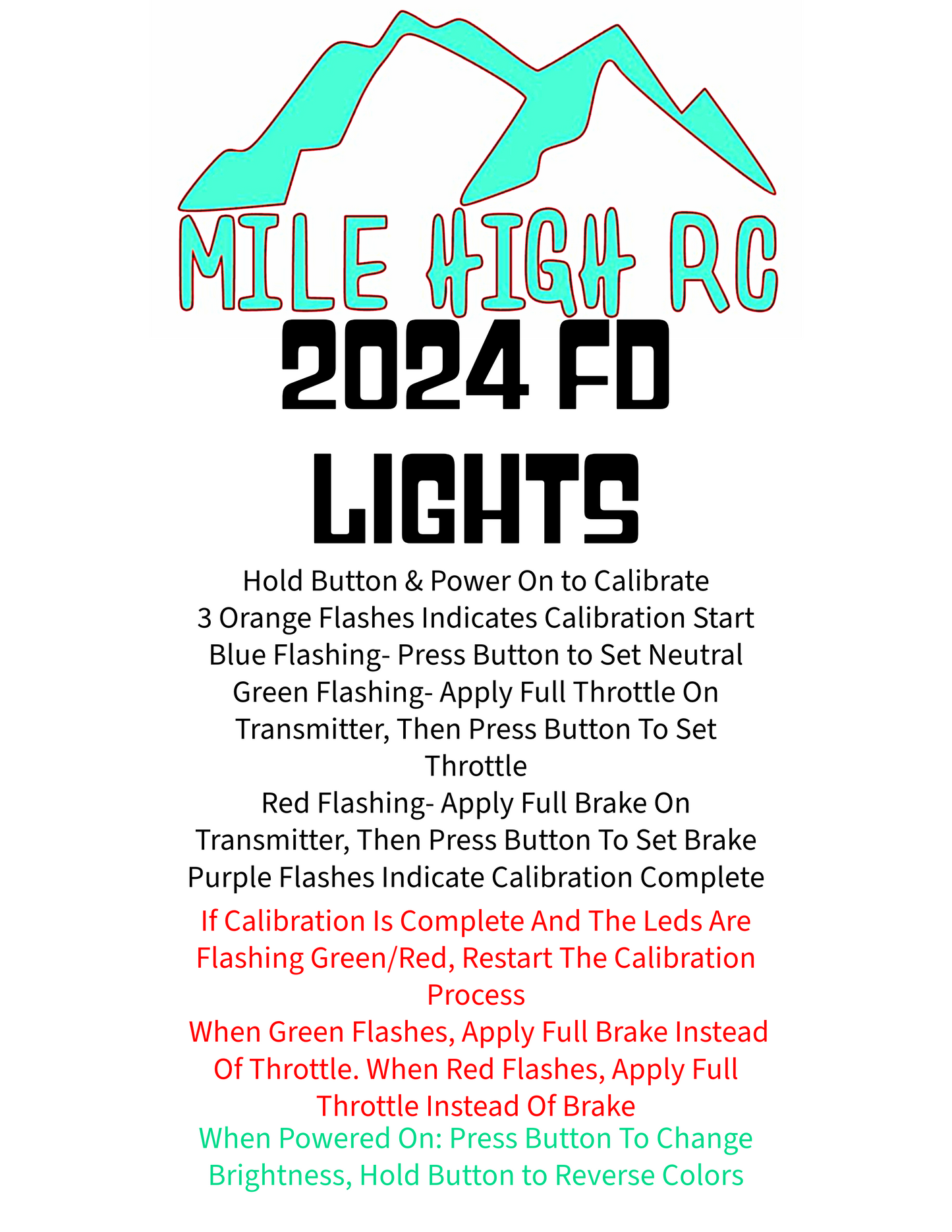

Hold Button & Power On to Calibrate 3 Orange Flashes Indicates Calibration Start

Blue Flashing- Press Button to Set Neutral

Green Flashing- Apply Full Throttle On Transmitter, Then Press Button To Set Throttle

Red Flashing- Apply Full Brake On Transmitter, Then Press Button To Set Brake

Purple Flashes Indicate Calibration Complete

If Calibration Is Complete And The LED Strips Are Flashing Green/Red, Restart The Calibration Process

When Green Flashes, Apply Full Brake Instead Of Throttle.

When Red Flashes, Apply Full Throttle Instead Of Brake

When Powered On: Press Button To Change Brightness, Hold Button to Reverse Colors
